A: The MH-630 PLUS supports workpieces up to Ø1,050mm in diameter and 1,300mm in height, within a 1,050/900/1,050mm (X/Y/Z) axis travel envelope.
A: The Box-in-Box moving-column design encloses the column structure within a rigid box frame, significantly increasing structural stiffness and vibration resistance. This translates to superior machining accuracy and surface finish quality, even under heavy interrupted cutting loads.
A: Standard ATC capacity is 60 tools, expandable to 120 or 180 tools — enabling long unattended production runs with diverse tooling requirements.
The MH-630 PLUS is Ingenious Machinery’s largest and most capable horizontal machining center, winner of the 2020 Taiwan Excellence Award — a recognition reserved for Taiwan’s most innovative and high-quality products. With a 630×630mm working table and 1,200kg maximum load capacity, the MH-630 PLUS is built for the heavy demands of automotive structural components, aerospace assemblies, heavy machinery parts, and large mold machining.

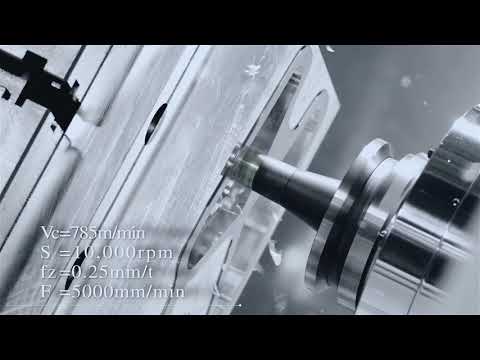

The MH-630 PLUS features an ISO No. 50 spindle with 10,000 rpm standard, scalable to 12,000 or 15,000 rpm via direct-drive options. Its patented Box-in-Box moving-column structure ensures exceptional rigidity under heavy cutting loads, while 48–50 m/min rapid traverse rates minimize non-cutting time. A servo-driven 180° APC provides fast, reliable pallet exchange, and the standard 60-tool ATC is expandable to 120 or 180 tools for extended unmanned production.
The maximum workpiece envelope of Ø1050mm diameter and 1,300mm height, within 1,050/900/1,050mm (X/Y/Z) travel, covers the vast majority of large industrial components. Standard B-axis indexing of 1° (optional 0.001°) provides reliable positioning for production-scale multi-face machining. Every MH-630 PLUS is manufactured and fully tested at Ingenious Machinery’s Taichung facility before shipment.
| ITEM | UNIT | MH-630 PLUS |
|---|---|---|
| Pallet | ||
| Pallet dimensions | mm | 630 x 630 |
| Bolt hole | mm | 24-M16 x P125 |
| Max. loading capacity | kgs | 1200 |
| B-axis minimum indexing | ° | STD: 1°; OPT: 0.001° |
| Index repeatability | STD: ±1″; OPT: ±6″ | |
| Pallet capacity | pcs | 2 |
| Max. speed of B-axis | rpm | 16 |
| Max. diameter of workpiece | mm | Φ1,050 |
| Max. height of workpiece | mm | 1300 |
| Travel Range | ||
| X / Y / Z-axis travel | mm | 1,050 / 900 / 1,050 |
| Spindle nose to table distance | mm | 50~1,100 |
| Spindle center to table distance | mm | 100~1,000 |
| Spindle | ||
| Spindle taper | ISO No. 50 | |
| Spindle front bearing inner dia. | mm | Φ100 |
| Spindle speed | rpm | STD: 50~10,000; OPT: 12,000, 15,000 (direct-drive) |
| Feedrate | ||
| Cutting feedrate of X/Y/Z-axis | mm/min | 1~30,000 |
| Rapid traverse speed of X/Y/Z-axis | m/min | 48 |
| Minimum setting unit of X/Y/Z-axis | mm | 0.001 |
| Feedback element | Optical scale (optional) | |
| Tool | ||
| Tool capacity | pcs | STD: 60; OPT: 120, 180 |
| Tool selection | Fixed tool pot number | |
| Max. tool dia. (no adjacent tool) | mm | Φ250 |
| Max. tool length | mm | 630 |
| Max. tool diameter | mm | Φ125 |
| Max. tool weight | kg | 20 |
| Tool shank type | STD: BT50; OPT: CAT50; BBT50, HSK100A | |
| Drive Motor | ||
| Spindle motor | kw | STD: α22iT/12,000 (22/26) |
| Servo motor of X/Y/Z/B-axis | kw | α22is x 2 / α50is / α30is x 2 / α12 (4.5 / 5 / 5.5 / 3) |
| Spindle recirculating lubrication motor | kw | 1.35 |
| Centralized lubrication system | W | 12 |
| Hydraulic motor | kw | 2.3 |
| Coolant motor | kw | 1.08 (50Hz) x 2 / 1.62 (60HZ) x 2 |
| Chip conveyor motor | kw | 0.2 |
| APC motor | kw | 2.5 |
| ATC motor | kw | 2.5 |
| Twin-arm / Tool arm motor | kw | 1.5 |
| Accuracy | ||
| Positioning accuracy | mm | ±0.005 |
| Repeatability | mm | ±0.004 |
| Power requirement | KVA | 380-415 / 220V 100 KVA |
| Miscellaneous | ||
| T-T (tool to tool) | sec | 3.5 |
| P-P (pallet to pallet) | sec | 16 |
| Outline dimension (L x W x H) | mm | 7,126 x 4,150 x 3,279 |
| Packing size | cm | 638 x 295 x 347 (machine); 483 x 295 x 322 (incl. 60-tool ATC) |
| Net weight | kgs | 18,800 + 4,440 (60-tool ATC) |
| Gross weight | kgs | 21,500 + 6,200 (60-tool ATC) |
● Fanuc 0i-MF Plus controller (10.4-inch LCD)
● 10,000 rpm direct-driven spindle
● BT50 spindle taper
● 22 / 26 kW spindle motor
● Spindle oil chiller
● 60-tool magazine (MH-630PLUS standard, larger than other MH models)
● Coolant system
● Automatic lubrication system
● Indexing table accuracy of 1° (standard; 0.001° available as optional)
● High-rigidity roller type linear guideways
● Chain type chip conveyor with cart
● Fully enclosed splash guard
● 2 pallets (bolted type)
● Work lamp
● Box-in-Box construction
● Dual ballscrew X/Z-axis with dual motor design
● T-T tool change time: 3.5 sec
● P-P pallet change time: 16 sec
● Controller upgrade: Siemens controller, Heidenhain controller
● Spindle speed upgrade: 12,000 rpm / 15,000 rpm direct-driven
● Spindle taper upgrade: BBT50 / DIN50 / HSK100A
● Spindle motor upgrade: 15 / 18.5 kW (2-step speed gear box)
● Tool magazine expansion: 120 / 180 tools
● Indexing table accuracy of 0.001°
● Single pallet configuration
● Scraper type chip conveyor with cart
● Automatic tool length measurement
● Automatic workpiece measurement
● Pallet wash system
● Hydraulic jig interface
● Oil mist collector
● Oil skimmer
● Coolant through spindle
● Oil cooling ballscrew
● Linear scale (full closed-loop position feedback)
● Automatic door
● Transformer
● CE approval
● Multi-pallet pool system (customization available)
● Large structural component mass production: Commercial vehicle and heavy-duty engine blocks, large transmission housings, large chassis structural parts
● Energy and heavy industry components: Hydraulic pump housings, valve blocks, large oil & gas equipment parts
● Large precision molds: Oversized injection molds, die-casting molds, automotive body panel large mold bases
● Extended unmanned large-workpiece production: Small-batch high-mix automated production of large workpieces
